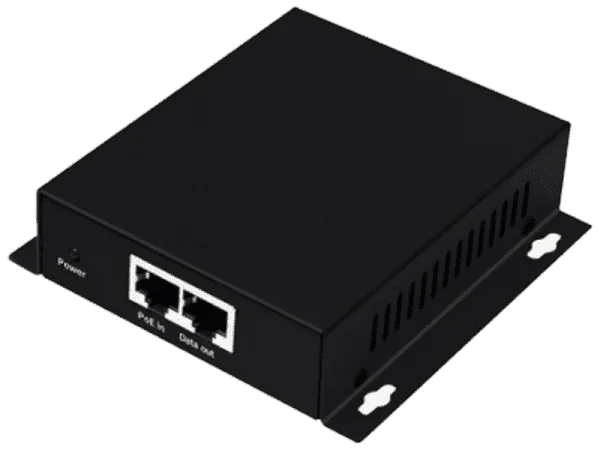

IEEE 802.3bt Gigabit PoE Splitter(72W)

Name: IEEE 802.3bt Gigabit PoE Splitter(72W)
Price: 50 USD
Availability: InStock

Product Name	Gigabit PoE Splitter
Classification	IEEE802.3bt
Input PoE Port	1*10/100/1000Mbps PoE-in Port
Output Power Port	DC 2.5/ Industrial Phoenix 2 PIN terminal
Output Data Port	1*10/100/1000Mbps Data-out Port

Product Name

Gigabit PoE Splitter

Classification

IEEE802.3bt

Input PoE Port

1*10/100/1000Mbps PoE-in Port

Output Power Port

DC 2.5/ Industrial Phoenix 2 PIN terminal

Output Data Port

1*10/100/1000Mbps Data-out Port

HoweVision standard POE splitter, complied with IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standards, can separate the power and data signals that transmitted through the network cable.

Equipped with two output connection modes: DC plug and industrial Phoenix terminal, the default output voltage is 12V, and the maximum output power can reach 72W. The machine adopts metal shell design, better protection, side ventilation and heat dissipation, longer life, and the working temperature range is -20℃~+50℃.


Product Model	PD-101G-72
General Information
Product Name	1000M Standard PoE Splitter
Port Definition	110/100/1000Mbps PoE-in Port 110/100/1000Mbps Data-out Port
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
PoE Features	IEEE802.3af /IEEE802.3at/IEEE802.3bt PoE Input: 48V~55V PoE power supply line sequence: 1/2+；3/6- or 4/5+；7/8- or 1/2-; 3/6+ Interface Type: DC 2.5/ Industrial Phoenix 2PIN terminal
Output	Voltage: 12V; Power: 72W
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、IEN61000-4-5 （Surge） Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Network Media	10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Protection
Security Certificae	CE、FCC、RoHS
Environment
Working Environment	Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
Indication
LED Indicators	Power(PoE Indicators)
Mechanical
Structure Size	Product Size：10510733mm Package Size：17513055mm Product Net-Weight：0.3KG Product Gross-Weight：0.4KG
Packing Info	MEAS：600495435MM Packing Qty：60PCS Packing weight：25 KG
Package List	PoE Injector * 1 pc, User Manual 1pc, Certificate 1pc
Ordering Info
PD-101G-72	11000M PoE-in Port + 11000M Data-out Port

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
